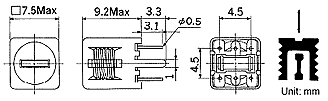

7mm TYPE 7PL   Frequency Range: 200kHz - 2MHz 2-20MHz (High Frequency)   Inductance Range: 20-500µH 1-100µH (High Frequency )   Temperature Coefficient: TC (L) 750±500ppm/°C TC (L) 220±220ppm/°C (High Frequency) With Internal Capacitor TC (F) 0±250ppm/°C   Optional Internal Capacitance Value:(1) (2) 150-390pF 5~100pF (High Frequency) Features Low profile, for a 7mm coil of only 9.2mm. Types 7PS for AM circuit application, and 7PS (high frequency) for FM circuit applications, are ideal for use as IFT coils and in OSC circuits. Standard Coils Selection Guide 7PL TOKO Part Number Inductance Range (mH) Q (min.) Test Frequency L7BRS-1764Z 56±5% 40 2.52MHz L7BRS-1765Z 100±5% 73 796kHz L7BRS-1766Z 150±5% 81 796kHz L7BRS-1767Z 220±5% 80 796kHz L7BRS-1768Z 270±5% 82 796kHz L7BRS-1769Z 330±5% 82 796kHz L7BRS-1770Z 390±5% 78 796kHz Type 7PL High Frequency TOKO Part Number Inductance Range (µH) Q (min.) Test Frequency 218ANS-1083Z 2.0±4% 72 7.96MHz 218ANS-1084Z 3.3±4% 69 7.96MHz 218ANS-1085Z 4.7±4% 70 7.96MHz 218ANS-1086Z 6.8±4% 73 7.96MHz 218ANS-1087Z 10.0±4% 69 2.52MHz 218ANS-1088Z 15.0±4% 70 2.52MHz 218ANS-1089Z 18.0±4% 70 2.52MHz This page is available in Adobe Acrobat pdf format. Adobe Acrobat is needed for viewing *.pdf files. Click Here to download. To view the 7PL data, in *.PDF version click Here. (file size: 27k).
