7mm TYPE 7KMM
| Frequency Range: |
2 - 120MHz |
|
| Inductance Range: |
0.03-82µH |
| Temperature Coefficient: |
Of Inductor TC (L) 220±220ppm/°
With Internal Capacitor TC
(F) 0±250ppm/° |
| Optional Internal Capacitance
Values: 5-100pF(1) |

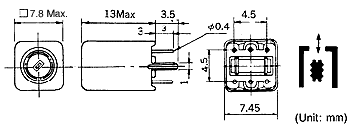

Features
- Spiral wound with high number of closely spaced slots on form,
yields low distributed capacitance, low temperature coefficient,
and added stability in humid conditions.
- Large capacity bobbin for higher inductance requirement.
|
Standard Coils
Selection Guide
(1) As an option, this type
is available with a funnel tapered slot for automatic alignment
machines.
Type
7KMM | 7KMM
High Frequncy(1) | Top
7KMM
TOKO
Part
Number |
Inductance
Range
(µH) |
Q
(min.) |
Test
Frequency
(MHz) |
| |
|
|
|
| 292KNAS-T1028Z |
0.10 ±6% |
35 |
50 |
| 292KNAS-T1029Z |
0.12±6% |
35 |
50 |
| 292KNAS-T1030Z |
0.15±6% |
35 |
50 |
| 292KNAS-T1031Z |
0.18±6% |
35 |
50 |
| 292KNAS-T1032Z |
0.22±6% |
50 |
50 |
| 292KNAS-T1033Z |
0.27±6% |
50 |
50 |
| 292KNAS-T1034Z |
0.33±6% |
50 |
50 |
| 292KNAS-T1035Z |
0.39±6% |
50 |
50 |
| 292KNAS-T1036Z |
0.47±6% |
50 |
50 |
| 292KNAS-T1037Z |
0.56±6% |
50 |
50 |
| 292KNAS-T1038Z |
0.68±6% |
50 |
50 |
| 292KNAS-T1039Z |
0.82±6% |
50 |
50 |
| 292CNS-T1040Z |
1.0±6% |
40 |
7.96 |
| 292CNS-T1041Z |
1.2±6% |
40 |
7.96 |
| 292CNS-T1042Z |
1.5±6% |
40 |
7.96 |
| 292CNS-T1043Z |
1.8±6% |
40 |
7.96 |
| 292CNS-T1044Z |
2.2±6% |
40 |
7.96 |
| 292CNS-T1045Z |
2.7±6% |
40 |
7.96 |
| 292CNS-T1046Z |
3.3±6% |
40 |
7.96 |
| 292CNS-T1047Z |
3.9±6% |
40 |
7.96 |
| 292CNS-T1048Z |
4.7±6% |
40 |
7.96 |
| 292CNS-T1049Z |
5.6±6% |
40 |
7.96 |
| 292CNS-T1050Z |
6.8±6% |
40 |
7.96 |
| 292CNS-T1051Z |
8.2±6% |
40 |
2.52 |
| F292CNS-T1052Z |
10.0±6% |
35 |
2.52 |
| F292CNS-T1053Z |
12.0±6% |
35 |
2.52 |
| F292CNS-T1054Z |
15.0±6% |
35 |
2.52 |
| F292CNS-T1055Z |
18.0±6% |
35 |
2.52 |
| F292CNS-T1056Z |
22.0±6% |
35 |
2.52 |
| F292CNS-T1057Z |
27.0±6% |
35 |
2.52 |
| F292CNS-T1058Z |
33.0±6% |
35 |
2.52 |
| F292CNS-T1059Z |
39.0±6% |
35 |
2.52 |
| F292CNS-T1060Z |
47.0±6% |
35 |
2.52 |
| F292CNS-T1061Z |
56.0±6% |
35 |
2.52 |
| F292CNS-T1062Z |
68.0±6% |
35 |
2.52 |
| F292CNS-T1063Z |
82.0±6% |
35 |
2.52 |
Type
7KMM | Top
7KMM High
Frequency
TOKO
Part
Number |
Inductance
Range
(µH) |
Q
(min.) |
Test
Frequency
(MHz) |
| 292SNS-T1365Z |
0.08±2% |
50 |
80 |
| 292SNS-T1366Z |
0.10±6% |
50 |
80 |
| 292SNS-T1367Z |
0.15±6% |
60 |
80 |
| 292SNS-T1368Z |
0.22±6% |
60 |
80 |
| 292SNS-T1369Z |
0.33±6% |
60 |
80 |
| 292SNS-T1370Z |
0.47±6% |
60 |
50 |
| 292SNS-T1371Z |
0.68±6% |
60 |
50 |
| 292KNS-T1372Z |
1.00±6% |
40 |
7.96 |
| 292KNS-T1373Z |
1.50±6% |
40 |
7.96 |
| 292KNS-T1374Z |
2.20±6% |
40 |
7.96 |
| 292KNS-T1375Z |
3.30±6% |
40 |
7.96 |
| 292KNS-T1376Z |
4.70±6% |
40 |
7.96 |
| 292KNS-T1377Z |
6.80±6% |
40 |
7.96 |
| 292KNS-T1378Z |
10.00±6% |
40 |
7.96 | 1Recommended for use with Motorola linear IC's
