7mm TYPE 7KLS
| Frequency Range: |
2 - 150MHz |
|
| Inductance Range: |
0.03-10µH |
| Operating Temperature Range: |
-25°C-80°C |
| Temperature Coefficient: |
TC (F) 40±600ppm/° (Reference only) |
| Optional Internal Capacitance Value:
5-1000pF |

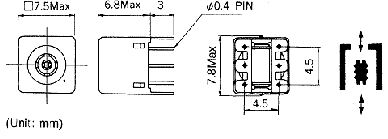

Features
- Designed for Quadrature Detector coil in FM IF circuit.
- Prepared additional winding area on the coil bobbin for phase
shifter inductor.
|
Standard Coils
Selection Guide
Type 7KLS
TOKO
Part
Number |
Inductance
Range
(µH) |
Q
(min.) |
Test
Frequency
(MHz) |
| |
|
|
|
| 402ENS-1168Z |
1.0±2% |
15 |
7.96 |
| 402ENS-1169Z |
1.2±2% |
15 |
7.96 |
| 402ENS-1170Z |
1.5±2% |
15 |
7.96 |
| 402ENS-1171Z |
1.8±2% |
15 |
7.96 |
| 402ENS-1172Z |
2.2±2% |
15 |
7.96 |
| 402ENS-1173Z |
2.7±2% |
15 |
7.96 |
| 402ENS-1174Z |
3.3±2% |
15 |
7.96 |
| 402ENS-1175Z |
3.9±2% |
15 |
7.96 |
| 402ENS-1176Z |
4.7±2% |
15 |
7.96 |
| 402ENS-1177Z |
5.6±2% |
15 |
7.96 |
| 402ENS-1178Z |
6.8±2% |
15 |
7.96 |
| 402ENS-1179Z |
8.2±2% |
15 |
7.96 |
| 402ENS-1180Z |
10.0±2% |
15 |
2.52 |
| 402ENS-1181Z |
12.0±2% |
15 |
2.52 |
