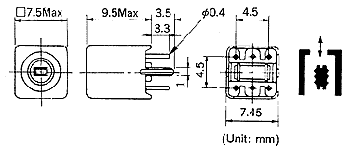

7mm TYPE 7KLL
| Frequency Range: |
2 - 120MHz |
|
| Inductance Range: |
0.03-50µH |
| Operating Temperature Range: |
-25°C-80°C |
| Temperature Coefficient: |
Inductor TC (L) 220+220ppm/°C
With Internal Capacitor TC (F)
0±250ppm/°C |
| Optional Internal Capacitance Value:
5-100pF |
Features
- Type 7KL is a low profile version of 7KM.
- Spiral wound with high number of closely spaced slots on form
yields low distributed capacitance, low temperature coefficient,
and added stability in humid conditions.
|
| This page is available in Adobe Acrobat pdf
format. |
 |
Adobe Acrobat is needed for viewing *.pdf
files. Click Here to
download. |
 |
To view the 7KLL data, in *.PDF version click
Here.
(file size: 39k). |
Standard Coils Selection
Guide
Frequency Range 2-30MHz
| 30-80MHz
| 80-120MHz
Type 7KLL
Frequency Range 2-30 MHz
TOKO
Part
Number |
Inductance
(µH) |
Q
Min. |
Test
Frequency
(MHz) |
| |
|
|
|
| 600BNS-8001 Z |
0.10 ± 6% |
40 min |
50 |
| 600BNS-8002 Z |
0.12 ± 6% |
40 min |
50 |
| 600BNS-8003 Z |
0.15 ± 6% |
45 min |
50 |
| 600BNS-8004 Z |
0.18 ± 6% |
45 min |
50 |
| 600BNS-8005 Z |
0.22 ± 6% |
50 min |
50 |
| 600BNS-8006 Z |
0.27 ± 6% |
50 min |
50 |
| 600BNS-8007 Z |
0.33 ± 6% |
55 min |
50 |
| 600BNS-8008 Z |
0.39 ± 6% |
55 min |
50 |
| 600BNS-8009 Z |
0.47 ± 6% |
55 min |
50 |
| 600BNS-8010 Z |
0.56 ± 6% |
55 min |
50 |
| 600BNS-8011 Z |
0.68 ± 6% |
55 min |
50 |
| 600BNS-8012 Z |
0.82 ± 6% |
55 min |
50 |
| 600BNS-8013 Z |
1.0 ± 6% |
49 ± 20% |
7.96 |
| 600BNS-8014 Z |
1.2 ± 6% |
50 ± 20% |
7.96 |
| 600BNS-8015 Z |
1.5 ± 6% |
47 ± 20% |
7.96 |
| 600BNS-8016 Z |
1.8 ± 6% |
49 ± 20% |
7.96 |
| 600BNS-8017 Z |
2.2 ± 6% |
46 ± 20% |
7.96 |
| 600BNS-8018 Z |
2.7 ± 6% |
48 ± 20% |
7.96 |
| 600BNS-8019 Z |
3.3 ± 6% |
48 ± 20% |
7.96 |
| 600BNS-8020 Z |
3.9 ± 6% |
47 ± 20% |
7.96 |
| 600BNS-8021 Z |
4.7 ± 6% |
47 ± 20% |
7.96 |
| 600BNS-8022 Z |
5.6 ± 6% |
46 ± 20% |
7.96 |
| 600BNS-8023 Z |
6.8 ± 6% |
45 ± 20% |
7.96 |
| 600BNS-8024 Z |
8.2 ± 6% |
45 ± 20% |
7.96 |
| 600BNS-8025 Z |
10.0 ± 6% |
40 ± 20% |
2.52 |
| 600BNS-8026 Z |
12.0 ± 6% |
42 ± 20% |
2.52 |
| 600BNS-8027 Z |
15.0 ± 6% |
43 ± 20% |
2.52 |
| 600BNS-8028 Z |
18.0 ± 6% |
45 ± 20% |
2.52 |
| 600BNS-8029 Z |
22.0 ± 6% |
46 ± 20% |
2.52 |
| F600BNS-8030 Z |
27.0 ± 6% |
33 ± 20% |
2.52 |
| F600BNS-8031 Z |
33.0 ± 6% |
32 ± 20% |
2.52 |
| F600BNS-8032 Z |
39.0 ± 6% |
37 ± 20% |
2.52 |
| F600BNS-8033 Z |
47.0 ± 6% |
36 ± 20% |
2.52 |
Frequency Range 2-30MHz
| 30-80MHz
| 80-120MHz
| Top
Type 7KLL
Frequency Range: 30 ~ 80MHz
TOKO
Part
Number |
Inductance
(µH) |
Q
min. |
Test
Frequency
(MHz) |
| |
|
|
|
| 600GNS-8034 Z |
0.10 ± 6% |
60 ± 20% |
50 |
| 600GNS-8035 Z |
0.12 ± 6% |
65 ± 20% |
50 |
| 600GNS-8036 Z |
0.15 ± 6% |
62 ± 20% |
50 |
| 600GNS-8037 Z |
0.18 ± 6% |
68 ± 20% |
50 |
| 600GNS-8038 Z |
0.22 ± 6% |
71 ± 20% |
50 |
| 600GNS-8039 Z |
0.27 ± 6% |
77 ± 20% |
50 |
| 600GNS-8040 Z |
0.33 ± 6% |
85 ± 20% |
50 |
| 600GNS-8041 Z |
0.39 ± 6% |
84 ± 20% |
50 |
| 600GNS-8042 Z |
0.47 ± 6% |
92 ± 20% |
50 |
| 600GNS-8043 Z |
0.56 ± 6% |
88 ± 20% |
50 |
| 600GNS-8044 Z |
0.68 ± 6% |
88 ± 20% |
50 |
| 600GNS-8045 Z |
0.82 ± 6% |
87 ± 20% |
50 |
| 600GNS-8046 Z |
1.0 ± 6% |
43 ± 20% |
7.96 |
| 600GNS-8047 Z |
1.2 ± 6% |
42 ± 20% |
7.96 |
| 600GNS-8048 Z |
1.5 ± 6% |
46 ± 20% |
7.96 |
| 600GNS-8049 Z |
1.8 ± 6% |
45 ± 20% |
7.96 |
| 600GNS-8050 Z |
2.2 ± 6% |
47 ± 20% |
7.96 |
| 600GNS-8051 Z |
2.7 ± 6% |
45 ± 20% |
7.96 |
| 600GNS-8052 Z |
3.3 ± 6% |
47 ± 20% |
7.96 |
| 600GNS-8053 Z |
3.9 ± 6% |
47 ± 20% |
7.96 |
| 600GNS-8054 Z |
4.7 ± 6% |
50 ± 20% |
7.96 |
| 600GNS-8055 Z |
5.6 ± 6% |
48 ± 20% |
7.96 |
| 600GNS-8056 Z |
6.8 ± 6% |
47 ± 20% |
7.96 |
| 600GNS-8057 Z |
8.2 ± 6% |
47 ± 20% |
7.96 |
| 600GNS-8058 Z |
10.0 ± 6% |
41 ± 20% |
2.52 |
| 600GNS-8059 Z |
12.0 ± 6% |
42 ± 20% |
2.52 |
| 600GNS-8060 Z |
15.0 ± 6% |
44 ± 20% |
2.52 |
| 600GNS-8061 Z |
18.0 ± 6% |
45 ± 20% |
2.52 |
| 600GNS-8062 Z |
22.0 ± 6% |
45 ± 20% |
2.52 |
| F600GNS-8063 Z |
27.0 ± 6% |
41 ± 20% |
2.52 |
| F600GNS-8064 Z |
33.0 ± 6% |
38 ± 20% |
2.52 |
| F600GNS-8065 Z |
39.0 ± 6% |
41 ± 20% |
2.52 |
| F600GNS-8066 Z |
47.0 ± 6% |
41 ± 20% |
2.52 |
Frequency Range 2-30MHz
| 30-80MHz
| 80-120MHz
| Top
Type 7KLL
Frequency Range: 80 ~ 120MHz
TOKO
Part
Number |
Inductance
(µH) |
Q
min. |
Test
Frequency
(MHz) |
| |
|
|
|
| 600ENS-8067 Z |
0.10 ± 6% |
56 ± 20% |
50 |
| 600ENS-8068 Z |
0.12 ± 6% |
64 ± 20% |
50 |
| 600ENS-8069 Z |
0.15 ± 6% |
67 ± 20% |
50 |
| 600ENS-8070 Z |
0.18 ± 6% |
73 ± 20% |
50 |
| 600ENS-8071 Z |
0.22 ± 6% |
73 ± 20% |
50 |
| 600ENS-8072 Z |
0.27 ± 6% |
81 ± 20% |
50 |
| 600ENS-8073 Z |
0.33 ± 6% |
87 ± 20% |
50 |
| 600ENS-8074 Z |
0.39 ± 6% |
88 ± 20% |
50 |
| 600ENS-8075 Z |
0.47 ± 6% |
90 ± 20% |
50 |
| 600ENS-8076 Z |
0.56 ± 6% |
93 ± 20% |
50 |
| 600ENS-8077 Z |
0.68 ± 6% |
92 ± 20% |
50 |
| 600ENS-8078 Z |
0.82 ± 6% |
94 ± 20% |
50 |
| 600ENS-8079 Z |
1.0 ± 6% |
39 ± 20% |
7.96 |
| 600ENS-8080 Z |
1.2 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8081 Z |
1.5 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8082 Z |
1.8 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8083 Z |
2.2 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8084 Z |
2.7 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8085 Z |
3.3 ± 6% |
44 ± 20% |
7.96 |
| 600ENS-8086 Z |
3.9 ± 6% |
44 ± 20% |
7.96 |
| 600ENS-8087 Z |
4.7 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8088 Z |
5.6 ± 6% |
45 ± 20% |
7.96 |
| 600ENS-8089 Z |
6.8 ± 6% |
44 ± 20% |
7.96 |
| 600ENS-8090 Z |
8.2 ± 6% |
47 ± 20% |
7.96 |
| 600ENS-8091 Z |
10.0 ± 6% |
38 ± 20% |
2.52 |
| 600ENS-8092 Z |
12.0 ± 6% |
40 ± 20% |
2.52 |
| 600ENS-8093 Z |
15.0 ± 6% |
44 ± 20% |
2.52 |
| 600ENS-8094 Z |
18.0 ± 6% |
35 ± 20% |
2.52 |
| 600ENS-8095 Z |
22.0 ± 6% |
34 ± 20% |
2.52 |
| F600ENS-8096 Z |
27.0 ± 6% |
33 ± 20% |
2.52 |
| F600ENS-8097 Z |
33.0 ± 6% |
37 ± 20% |
2.52 |
| F600ENS-8098 Z |
39.0 ± 6% |
37 ± 20% |
2.52 |
| F600ENS-8099 Z |
47.0 ± 6% |
36 ± 20% |
2.52 |
