5mm TYPE 5P, 5PG, 5PA,
5PAG
| Frequency Range: |
5P, 5PG 0.2~2.0MHz, 5PA, 5PAG 0.1-1MHz
5P High Frequency
1-15MHz
|
 |
| Inductance Range: |
5P, 5PG 30-680µH
5P, 5PG High Frequency 1-40µH
5PA, 5PAG
100µH-4.5mH |
| Temperature Coefficient: |
TC (L) of 5P, 5PG 850±350ppm/°C
5PA, 5PAG
750±450ppm/°C and
5P, 5PG High Frequency 220±220ppm/°C.
With
Internal Capacitor TC (F) of 5P, 5PG or 5P, 5PG
High Frequency
0±250ppm/°C |
| Optional Internal Capacitance
Value:(1) (2) |
|
(See selection guide) |

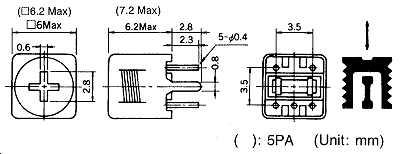

Features
- Low profile for compact designs.
|
|
Standard Parts
Selection Guide
- The 5P is available with the following internal ceramic capacitors:
180, 470, 1500pF for standard AM applications.
- 5P High Frequency is available with internal ceramic capacitors,
18-56pF for standard FM applications.
5P
| 5P
High Frequency | 5PA
Type
5P
TOKO
Part
Number |
Inductance
Range
(uH) |
Q
(min.) |
Test
Frequency
(MHz) |
| 5PNR-3509Z |
47.0±5% |
40 |
2.52 |
| 5PNR-3510Z |
56.0±5% |
40 |
2.52 |
| 5PNR-3511Z |
68.0±5% |
40 |
2.52 |
| 5PNR-3512Z |
82.0±5% |
40 |
2.52 |
| 5PNR-3513Z |
100.0±5% |
40 |
2.52 |
| 5PNR-3514Z |
120.0±5% |
40 |
2.52 |
| 5PNR-3515Z |
150.0±5% |
40 |
0.796 |
| 5PNR-3616Z |
180.0±5% |
40 |
0.796 |
| 5PNR-3617Z |
220.0±5% |
40 |
0.796 |
| 5PNR-3618Z |
270.0±5% |
40 |
0.796 |
| 5PNR-3619Z |
330.0±5% |
40 |
0.796 |
| 5PNR-3620Z |
470.0±5% |
40 |
0.796 |
| 5PNR-3637Z |
560.0±5% |
40 |
0.796 |
| 5PNR-3638Z |
680.0±5% |
40 |
0.796 | |
5P
High Frequency
TOKO
Part
Number |
Inductance
Range
(uH) |
Q
(min.) |
Test
Frequency
(MHz) |
| 332PN-3489Z |
1.0±5% |
55 |
7.96 |
| 332PN-3490Z |
1.2±5% |
55 |
7.96 |
| 332PN-3491Z |
1.5±5% |
55 |
7.96 |
| 332PN-3492Z |
1.8±5% |
55 |
7.96 |
| 332PN-3493Z |
2.2±5% |
55 |
7.96 |
| 332PN-3494Z |
2.7±5% |
55 |
7.96 |
| 332PN-3495Z |
3.3±5% |
55 |
7.96 |
| 332PN-3496Z |
3.9±5% |
55 |
7.96 |
| 332PN-3497Z |
4.7±5% |
55 |
7.96 |
| 332PN-3498Z |
5.6±5% |
55 |
7.96 |
| 332PN-3499Z |
6.8±5% |
55 |
7.96 |
| 332PN-3500Z |
8.2±5% |
55 |
7.96 |
| 332PN-3501Z |
10.0±5% |
55 |
2.52 |
| 332PN-3502Z |
12.0±5% |
55 |
2.52 |
| 332PN-3503Z |
15.0±5% |
55 |
2.52 |
| 332PN-3504Z |
18.0±5% |
55 |
2.52 |
| 332PN-3505Z |
22.0±5% |
55 |
2.52 |
| 332PN-3506Z |
27.0±5% |
55 |
2.52 |
| 332PN-3507Z |
33.0±5% |
55 |
2.52 |
| 332PN-3508Z |
39.0±5% |
55 |
2.52 | |
5PA
TOKO
Part
Number |
Inductance
Range
(mH) |
Q
(min.) |
Test
Frequency
(kHz) |
| 451AN-0002Z |
0.8±5% |
65 |
796 |
| 451AN-0001Z |
1.0±5% |
50 |
252 |
| 451AN-0042Z |
2.0±5% |
40 |
252 |
| 451AN-0041Z |
3.0±5% |
50 |
252 |
