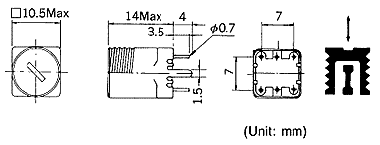

10mm TYPE 10PA
| Frequency Range: |
10-200kHz |
|
| Inductance Range: |
1-56mH |
| Temperature Coefficient: |
TC (L) 220±220ppm/°C max | |
 |
Features
- The larger drum and cup core produces high inductance and
greatly improves saturation levels. This increased inductance
makes this coil ideal for oscillator and audio filter
applications.
|
Standard Coils
Selection Guide
Type
10PA
TOKO
Part
Number |
Inductance
Range
(mH) |
Q
(min.) |
Test
Frequency
(KHz) |
| |
|
|
|
| CLNS-T1018Z |
1.0±10% |
80 |
252 |
| CLNS-T1019Z |
1.2±10% |
80 |
252 |
| CLNS-T1020Z |
1.5±10% |
80 |
252 |
| CLNS-T1021Z |
1.8±10% |
80 |
252 |
| CLNS-T1022Z |
2.2±10% |
80 |
252 |
| CLNS-T1023Z |
2.7±10% |
80 |
252 |
| CLNS-T1024Z |
3.3±10% |
80 |
252 |
| CLNS-T1025Z |
3.9±10% |
80 |
252 |
| CLNS-T1026Z |
4.7±10% |
80 |
252 |
| CLNS-T1027Z |
5.6±10% |
80 |
252 |
| CLNS-T1028Z |
6.8±10% |
80 |
252 |
| CLNS-T1029Z |
8.2±10% |
80 |
252 |
| CLNS-T1030Z |
10.0±10% |
70 |
79.6 |
| CLNS-T1031Z |
12.0±10% |
70 |
79.6 |
| CLNS-T1032Z |
15.0±10% |
70 |
79.6 |
| CLNS-T1033Z |
18.0±10% |
70 |
79.6 |
| CLNS-T1034Z |
22.0±10% |
70 |
79.6 |
| CLNS-T1035Z |
27.0±10% |
70 |
79.6 |
| CLNS-T1036Z |
33.0±10% |
70 |
79.6 |
| CLNS-T1037Z |
39.0±10% |
70 |
79.6 |
| CLNS-T1038Z |
47.0±10% |
70 |
79.6 |
| CLNS-T1039Z |
56.0±10% |
70 |
79.6 |
