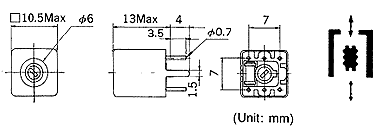

10mm TYPE 10K
| Frequency Range: |
2-120MHz |
|
| Inductance Range: |
0.08-82µH |
| Temperature Coefficient: |
Inductor TC (L) 220±150ppm/°C max With Internal Capacitor TC (F)
0±150ppm/°C |
| Optional Internal Capacitance
Values: 5-100pF (1) |
Features
- Spiral wound with high number of closely spaced slots on form
yields low distributed capacitance, low temperature coeffiecient,
and added stability in humid conditions.
- Automatic insertion packaging available.
|
Standard Coils
Selection Guide
Type10K
| 10K
w/Internal Capacitor | Top
Type
10K
TOKO
Part
Number |
Inductance
Range
(µH) |
Q
(min.) |
Test
Frequency
(MHz) |
Shield |
| |
|
|
|
|
| BTKENS-T1043Z |
0.08±2% |
50 |
75 |
YES |
| BTKENS-T1044Z |
0.10±6% |
60 |
75 |
YES |
| BTKENS-T1045Z |
0.15±6% |
60 |
75 |
YES |
| BTKENS-T1046Z |
0.22±6% |
60 |
75 |
YES |
| BTKXNS-T1047Z |
0.33±6% |
60 |
45 |
YES |
| BTKXNS-T1048Z |
0.47±6% |
70 |
45 |
YES |
| BTKXNS-9455HM |
0.47±6% |
80 |
25.2 |
YES |
| TKXNF-9427HM |
0.47±6% |
80 |
25.2 |
NO |
| BTKXNS-9454HM |
0.56±6% |
80 |
25.2 |
YES |
| TKXNF-9426HM |
0.56±6% |
80 |
25.2 |
NO |
| BTKXNS-T1049Z |
0.68±6% |
70 |
45 |
YES |
| BTKXNS-9453HM |
0.68±6% |
100 |
25.2 |
YES |
| TKXNF-9425HM |
0.68±6% |
80 |
25.2 |
NO |
| BTKXNS-9452HM |
0.82±6% |
100 |
25.2 |
YES |
| TKXNF-9424HM |
0.82±6% |
80 |
25.2 |
NO |
| BTKXNS-T1050Z |
1.00±6% |
80 |
25.2 |
YES |
| TKXNS-9451HM |
1.0±6% |
100 |
25.2 |
YES |
| TKXNF-9423HM |
1.0±6% |
80 |
25.2 |
NO |
| BTKANS-9450HM |
1.2±6% |
60 |
7.96 |
YES |
| TKANF-9422HM |
1.2±6% |
50 |
7.96 |
NO |
| BTKANS-9449HM |
1.5±6% |
60 |
7.96 |
YES |
| TKANF-9421HM |
1.5±6% |
55 |
7.96 |
NO |
| BTKANS-9448HM |
1.8±6% |
60 |
7.96 |
YES |
| TKANF-9420HM |
1.8±6% |
60 |
7.96 |
NO |
| BKTANS-9447HM |
2.2±6% |
60 |
7.96 |
YES |
| TKANF-9419HM |
2.2±6% |
65 |
7.96 |
NO |
| BTKANS-9446HM |
2.7±6% |
70 |
7.96 |
YES |
| TKANF-9418HM |
2.7±6% |
65 |
7.96 |
NO |
| BTKANS-9445HM |
3.3±6% |
70 |
7.96 |
YES |
| TKANF-9417HM |
3.3±6% |
70 |
7.96 |
NO |
| TKAN-9444HM |
3.9±6% |
70 |
7.96 |
YES |
| TKANF-9416HM |
3.9±6% |
70 |
7.96 |
NO |
| BTKANS-9443HM |
4.7±6% |
70 |
7.96 |
YES |
| TKANF-9415HM |
4.7±6% |
65 |
7.96 |
NO |
| TKAN-9442HM |
5.6±6% |
70 |
7.96 |
YES |
| TKANF-9414HM |
5.6±6% |
70 |
7.96 |
NO |
| BTKANS-9441HM |
6.8±6% |
70 |
7.96 |
YES |
| TKANF-9413HM |
6.8±6% |
60 |
7.96 |
NO |
| TKAN-9440HM |
8.2±6% |
70 |
7.96 |
YES |
| TKANF-9412HM |
8.2±6% |
70 |
7.96 |
NO |
| BTKANS-9439HM |
10.0±6% |
70 |
7.96 |
YES |
| TKANF-9411HM |
10.0±6% |
70 |
7.96 |
NO |
| TKAN-9438HM |
12.0±6% |
55 |
2.52 |
YES |
| TKANF-9410HM |
12.0±6% |
60 |
2.52 |
NO |
| BTKANS-9437HM |
15.0±6% |
50 |
2.52 |
YES |
| TKANF-9409HM |
15.0±6% |
60 |
2.52 |
NO |
| TKAN-9436HM |
18.0±6% |
50 |
2.52 |
YES |
| TKANF-9408HM |
18.0±6% |
50 |
2.52 |
NO |
| BTKANS-9435HM |
22.0±6% |
50 |
2.52 |
YES |
| TKANF-9407HM |
22.0±6% |
45 |
2.52 |
NO |
| TKAN-9434HM |
27.0±6% |
50 |
2.52 |
YES |
| TKANF-9406HM |
27.0±6% |
50 |
2.52 |
NO |
| BTKANS-9433HM |
33.0±6% |
50 |
2.52 |
YES |
| TKANF-9405HM |
33.0±6% |
50 |
2.52 |
NO |
| BTKANS-9432HM |
39.0±6% |
45 |
2.52 |
YES |
| TKANF-9404HM |
39.0±6% |
50 |
2.52 |
NO |
| BTKANS-9431HM |
47.0±6% |
45 |
2.52 |
YES |
| TKANF-9403HM |
47.0±6% |
50 |
2.52 |
NO |
| BTKANS-9430HM |
56.0±6% |
50 |
2.52 |
YES |
| TKANF-9402HM |
56.0±6% |
50 |
2.52 |
NO |
| BTKANS-9429HM |
68.0±8% |
50 |
2.52 |
YES |
| TKANF-9401HM |
68.0±6% |
60 |
2.52 |
NO |
| BTKANS-9428HM |
82.0±8% |
50 |
2.52 |
YES |
| TKANF-9400HM |
82.0±6% |
60 |
2.52 |
NO |
Type10K
| 10K
w/Internal Capacitor | Top
Type 10K With
Internal Capacitor
TOKO
Part
Number |
Tuning
Capacitance (1)
(pF) |
Turns Ratio
|
Others |
Q |
Test
Frequency
(MHz) |
| |
|
1-3/2-3 |
1-3/4-6 |
|
|
|
| TKACS-6184A |
82 + 5 (ext) |
13:03 |
13:03 |
|
65±20% |
10.7 |
| BTKAC-28551Z |
100 + 0 (ext) |
|
|
|
55±20% |
5.5 |
| YBTKAES-29882Z |
47( + 10 (ext) |
|
|
|
55±20% |
4.5 |
| YTKAEAS-29377Z |
82 + 0 (ext) |
|
|
|
60±20% |
10.7 |
