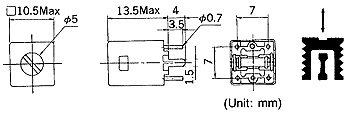

10mm TYPE 10EZ, 10EZ High
Frequency
| Frequency Range: |
0.2-2MHz (10EZ)
2-15MHz (10EZ High Freq.) |
|
| Inductance Range: |
1mH-2mH (10EZ)
2-55mH (10EZ High Freq.) |
| Temperature Coefficient: |
Inductor TC (L) 750±500ppm/°C
220±220ppm/°C (10EZ High Freq.)
With Internal Capacitor TC (F) 0±250ppm/°C |
| Optional Internal Capacitance Values:
|
150-390pF (10EZ),
5-100pF (10EZ High
Freq.) |
Features
- Most economical and widely used coil in the world for AM and
FM IFTs.
- Automatic insertion packaging available.
|
Standard Coils
Selection Guide
Type10EZ
| 10EZ
w/Internal Capacitor | 10EZ
High Frequency | 10EZ
High Frequency w/Internal Capacitor | Top
Type 10EZ
TOKO
Part
Number |
Inductance
Range
(µH) |
Turns Ratio: |
Q
(min.) |
Test
Frequency
(kHz) |
| |
|
1-3/1-2 |
1-3/4-6 |
|
|
| RAN-10A6729EK |
630±10% |
154:29 |
154:4 |
95±20% |
200 |
| RAN-10A6845EK |
630±10% |
154:9 |
154:4 |
95±20% |
200 |
| RUNS-T1027Z |
1000±10% |
|
|
50 |
252 |
| RUNS-T1028Z |
1200±10% |
|
|
50 |
252 |
| RUNS-T1029Z |
1500±10% |
|
|
50 |
252 |
| RUNS-T1030Z |
1800±10% |
|
|
50 |
252 |
| RWO-6A5105BM |
360±6% |
|
98:28 |
80 |
796 |
| RWO-6A6255N |
270±6% |
85:3 |
85:8 |
65(@1.4MHz) |
796 |
| RWR-151208N2 |
150±6% |
65:2 |
65:8 |
90(@1.4MHz) |
796 |
| RWR-151308N0 |
150±6% |
65:3 |
65:8 |
90(@1.4MHz) |
796 |
| RWR-271208N2 |
270±6% |
85:2 |
84:8 |
60(@1.4MHz) |
796 |
| RWR-271308N0 |
270±6% |
85:3 |
85:8 |
80(@1.4MHz) |
796 |
| RWR-331208N2 |
330±6% |
94:2 |
94:2 |
70(@1.4MHz) |
796 |
| RWR-331308N0 |
330±6% |
94:3 |
94:8 |
70(@1.4MHz) |
796 |
| RWR-361208N2 |
360±6% |
98:2 |
98:2 |
80(@1.4MHz) |
796 |
| RWR-361308N2 |
360±6% |
98:2 |
98:8 |
80(@1.4MHz) |
796 |
| RWR-361412N2 |
360±6% |
100:4 |
100:12 |
50(@1.4MHz) |
796 |
| RWRS-T1015Z |
100±10% |
|
|
100 |
796 |
| RWRS-T1016Z |
120±10% |
|
|
100 |
796 |
| RWRS-T1017Z |
150±10% |
|
|
100 |
796 |
| RWRS-T1018Z |
180±10% |
|
|
100 |
796 |
| RWRS-T1019Z |
220±10% |
|
|
100 |
796 |
| RWRS-T1020Z |
270±10% |
|
|
100 |
796 |
| RWRS-T1021Z |
330±10% |
|
|
100 |
796 |
| RWRS-T1022Z |
390±10% |
|
|
100 |
796 |
| RWRS-T1023Z |
470±10% |
|
|
100 |
796 |
| RWRS-T1024Z |
560±10% |
|
|
100 |
796 |
| RWRS-T1025Z |
680±10% |
|
|
100 |
796 |
| RWRS-T1026Z |
820±10% |
|
|
100 |
796 |
